Model: LNK-4KE-120 Series
Overview
Features
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI1.4; HDCP 1.4 |
| Maximum pixel clock | 225MHz | |
| Maximum data rate | 10.2Gbps | |
| Maximum resolution | 3840*2160@30Hz (backward-compatible) | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| USB | Interface | PC: Standard USB-A K/M: Standard USB-A |
| USB Signal | HID Signal | |
| UTP | Interface | RJ45 (IEEE - 568b connection) |
| Transmission distance | CAT6-120M | |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 82*85*17mm | |
| The warranty | 1 year free warranty | |
| Part No | Description of product |

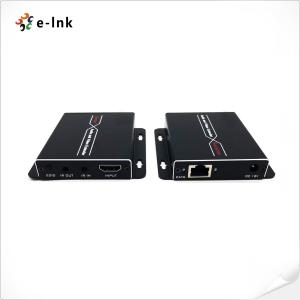

| LNK-4KE-120 | 4K@30HZ HDMI Extender 120M With Loopout & Dual IR |
Application
