China Mini 4K HDMI Optical Transceiver Supports All Modes up to 4K*2K@30Hz Resolution wholesale

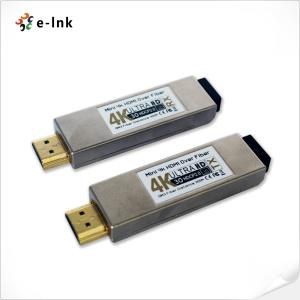

Mini 4K HDMI Optical Transceiver Supports All Modes up to 4K*2K@30Hz Resolution

Name: Mini 4K HDMI Optical Transceiver Supports All Modes up to 4K2K30Hz Resolution
Brand: E-link
Price: 135 USD

Ask Latest Price

Video Channel

Brand Name :E-link

Model Number :LNK-106M Series

Certification :Iso9001, CE, ROHS, FCC

Place of Origin :China

MOQ :1 pair

Price :US$135-US$159

Payment Terms :T/T,Western Union,MoneyGram,PayPal

Supply Ability :1000/Month

Delivery Time :3-5 working days

Packaging Details :HDMI Fiber Extender Standard Carton Packaging

Signal Support :HDMI 1.4a HDMI format standard and HDCP compliant

Video Support :1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz

Fiber Connector :Double LC Receptacle

Transmission Distance :Multi Mode, up to 984ft (300M)

Storage Temperature :-20°C to + 85°C

Dimension (WxDxH) :3.15 x 0.79 x 0.35 in (80x20x9mm)

Contact Now

Add to Cart

View Product Description

Mini 4K HDMI Optical Transceiver

Model:LNK-106M Series

Overview

The Mini 4K HDMI Optical Transceiver is a compact, enclosed HDMI optical module engineered

to deliver uncompressed lossless transmission of HDMI 1.4a signals, making it an ideal solution

for space-constrained high-definition video transmission scenarios. As a Mini 4K HDMI Optical

Transceiver, it combines a small form factor with robust performance, enabling seamless integration

into environments where installation space is limited, such as compact AV racks, wall-mounted

enclosures, and portable multimedia setups.

This transceiver supports transmission over multimode optical fiber at 850nm wavelength, with

a maximum distance of 300m, ensuring stable signal delivery even across extended distances.

It handles a resolution of 4Kx2K, delivering crisp, high-fidelity video output critical for applications

demanding superior visual quality. The transmitter unit (4K HDMI Optical Transceiver-T) converts

HDMI signals into a single 10Gb/s serial data stream for transmission over two optical fibers, while

the receiver unit (4K HDMI Optical Transceiver-R) reconverts the serial data back to an HDMI signal,

maintaining signal integrity throughout the transmission chain.

Compliant with RoHS standards and lead-free, the Mini 4K HDMI Optical Transceiver meets stringent

environmental requirements in Europe and China, aligning with global sustainability norms. Its compact

design does not compromise on performance—equipped with strong anti-interference capabilities, it

effectively resists electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring

stable signal transmission in complex electrical environments. This makes it suitable for a wide range

of applications, including large-screen display systems in exhibition halls, high-end conferencing setups,

home entertainment centers, digital signage networks, and professional AV installations where both

space efficiency and signal reliability are paramount. The combination of miniaturized design, 4K

resolution support, long-distance transmission, and robust interference resistance establishes it as

a versatile choice for modern high-definition video transmission needs.

Features

►DDC CEC HPD Signal Support

► Uncompressed transmission, No delay, No losses

► HDMI 1.4a and HCCP1.2 Support

► Operating Case Temperature: 0~70°

► Supports All Modes up to 4K*2K@30Hz Resolution

► Standard HDMI Connector

► Integrated USB Connector for Power

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photodetector

► Video over (2) multimode fibers

► Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)

►Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	Double LC Receptacle
Transmission Distance	Multi Mode, up to 984ft (300M)
Operating Temperature	0°C to + 50°C
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Application

Ordering Information

Item	Description

LNK-106M	Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
