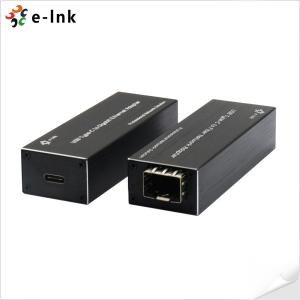

Micro Mini USB-C to SFP Gigabit Ethernet Adapter
Model: LNK-TCF1000
Overview
Features
► 1x100/1000Base-X SFP Slot + 1xTYPE-C USB3.0 Slot
► USB 3.0 compatibility ensures high performance packet transfer rate
► Provides a fiber network connection to portable laptops or tablets
► Fiber-to-the-desk connectivity (FTTD) enhances security, reducing the risk of data leaks
► Full duplex with flow control and half duplex with back pressure operation
► Highly portable design, with no need for an external power adapter (bus powered)
► Certified drivers for Windows, macOS and Linux
► Plug-and-play installation
Technical Indexes
| Specifications | |
| Standards: | IEEE 802.1p Class of service |
| IEEE 802.1Q VLAN Tagging | |
| IEEE 802.2 Logical Link Control (LLC) | |
| IEEE 802.3ac VLAN tagging | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3x Flow Control and Back pressure | |
| IEEE802.3u 100Base-TX/FX Fast Ethernet | |
| IEEE 802.3z 1000Base-X Gigabit Ethernet | |
| IEEE 802.3ad Link Aggregation Control Protocol (LACP) | |
| Chipset ID: | Realtek RTL8213B |
| Network Transfer Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Jumbo Frame Support: | 9K max. |
| Other: | Supports power Down / Link down power saving |
| Software | |
| OS Compatibility: | Windows® 7, 8, 8.1, 10, 11 Windows® Server 2008, 2012, 2016, 2019 macOS 10.9 - 10.14, 11.0, 12.0, 13.0 Linux® kernel 3.5 and up - LTS Versions only |
| Interface | |
| USB: | 1 x USB-C 3.0 |
| SFP: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Power: | USB Bus Powered |
| Power Consumption: | 5W Max. |
| LED Indicators: | |
| L/A: | Link/Activity |
| Dimensions (WxDxH): | 78 x 27 x 18 mm |
| Weight: | 46g |
| Casing: | Aluminum Case |
| Mounting Options: | Desktop |
| Environmental | |
| Operating Temperature: | 0°C ~ 60°C (32° ~ 140°F) |
| Storage Temperature: | -10° ~ 70°C (14° ~ 158°F) |
| Relative Humidity: | 5% to 90% non-condensing |
| MTBF | > 100,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
Ordering Information
| Model | Description |
| LNK-TCF1000 | Micro Mini USB-C 3.0 to Fiber Optic Converter - Open SFP |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page. |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Desktop |
| Power Options | ► No need for an external power adapter (bus powered) |
| Package Contents | ►USB 3.0 to SFP Gigabit Ethernet Adapter x 1 |
| ► Quick installation guide x 1 |
Application
