► Transmit VGA video and audio over long distances through the cable, up to 150 meters;
► The highest resolution HD video signals up to 1080P @ 60Hz;
► Compliance with VGA standard protocol;
► Support for external one-way analog stereo audio signal transmission;
► Support USB keyboard and mouse transmission;
► It can automatically identify and configure a variety of display modes;
► Built-in automatic equalization system, the picture is smooth, clear and stable;
Built-in ESD Protection Circuit, comprehensive protection system

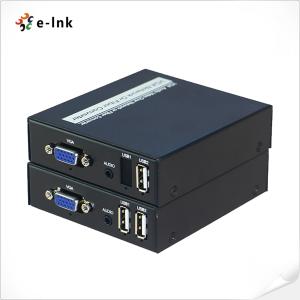

LNK-UVGA-KVM Extender could transmission high-definition video long distance through a single cable, while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications.
The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.
| Parameter | Description | |
| Video | Signal Type | VGA |
| BW | 380MHz | |
| Resolution | 1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps | |
| Impedance | 75Ω | |
| Audio | Port | 3.5mm Stereo audio socket |
| Type | Stereo | |
| K/M | PIN | USB |
| Ethernet port | Cable Type | IEEE 568B |
| Max transmission distance | Cat5e :120m,cat6 :150m | |
| Part No | Description of product |
| LNK-UVGA-T/R | VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
| LNK-UVGA-KVM-T/R | USB VGA KVM Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
