Ethernet Adaptor Features
► 100/1000BASE-X SFP slots for SFP type auto detection
► 3x 10/100/1000M RJ-45 port
► 1x PoE PD type 10/100/1000M RJ-45 port
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Support 5~24VDC output (Max 3A, Max 60W)
► Supports DIN-Rail and Wall-mount installation
► -20°C to 50°C operating temperature
Overview

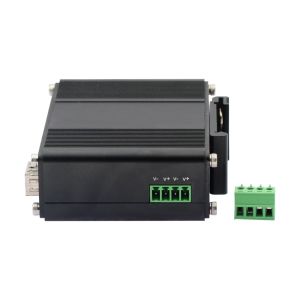

The LNK-IMC103G-SFP-PD product is a Hybrid Interface Ethernet Adaptor.
This adaptor is combined with four 10/100/1000M RJ-45 ports and one 100/1000M optical fiber SFP slot.
The “PoE IN” RJ-45 port accepts PoE (Power over Ethernet) power input from the remote
PSE ethernet switch or PoE injector, so the adaptor can work without additional power supply and
support 5~24VDC output (Max 3A, Max 60W) function. The additional 100Base-FX/1000Base-X self-adaption
SFP port can extend the RJ-45 port to long-distance optical fiber interface.
The LNK-IMC103G-SFP-PD product is suitable for 35mm DIN rail installation. An additional L-shaped
bracket can be used to replace the DIN rail plate, so the user can install the adaptor on the wall or a flat surface.
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3at/bt Power over Ethernet | |
| Interface | |
| Connector: | 4x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Phoenix Connector | Support 5-24VDC output (Max3A, Max60W) |
| Electrical and Mechanical | |
| LED Indicators: | |
| FX L/A: | Data LINK Status |
| FX SPD | FX SPD Status |
| PWR: | Power Status |
| 100M/1000M: | Fiber LINK Status |
| DIP Switch Function: | |
| 100M DIP Switch | ON - Enabled OFF - Disabled |
| VLAN DIP Switch | ON - Enabled OFF - Disabled |
| Dimensions (WxDxH): | 95 x 82 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 90% max, non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
| EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 | |
| EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC103G-SFP-PD | Mini 3-Port 10/100/1000T + 1-Port 100/1000X SFP Hybrid Interface Ethernet Adaptor with PD and PoE Splitter Function |
| Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
